Horizon 7 Network Diagram

The vmware horizon 7 network ports document lists port requirements for connectivity between the various components and servers in a horizon 7 deployment.

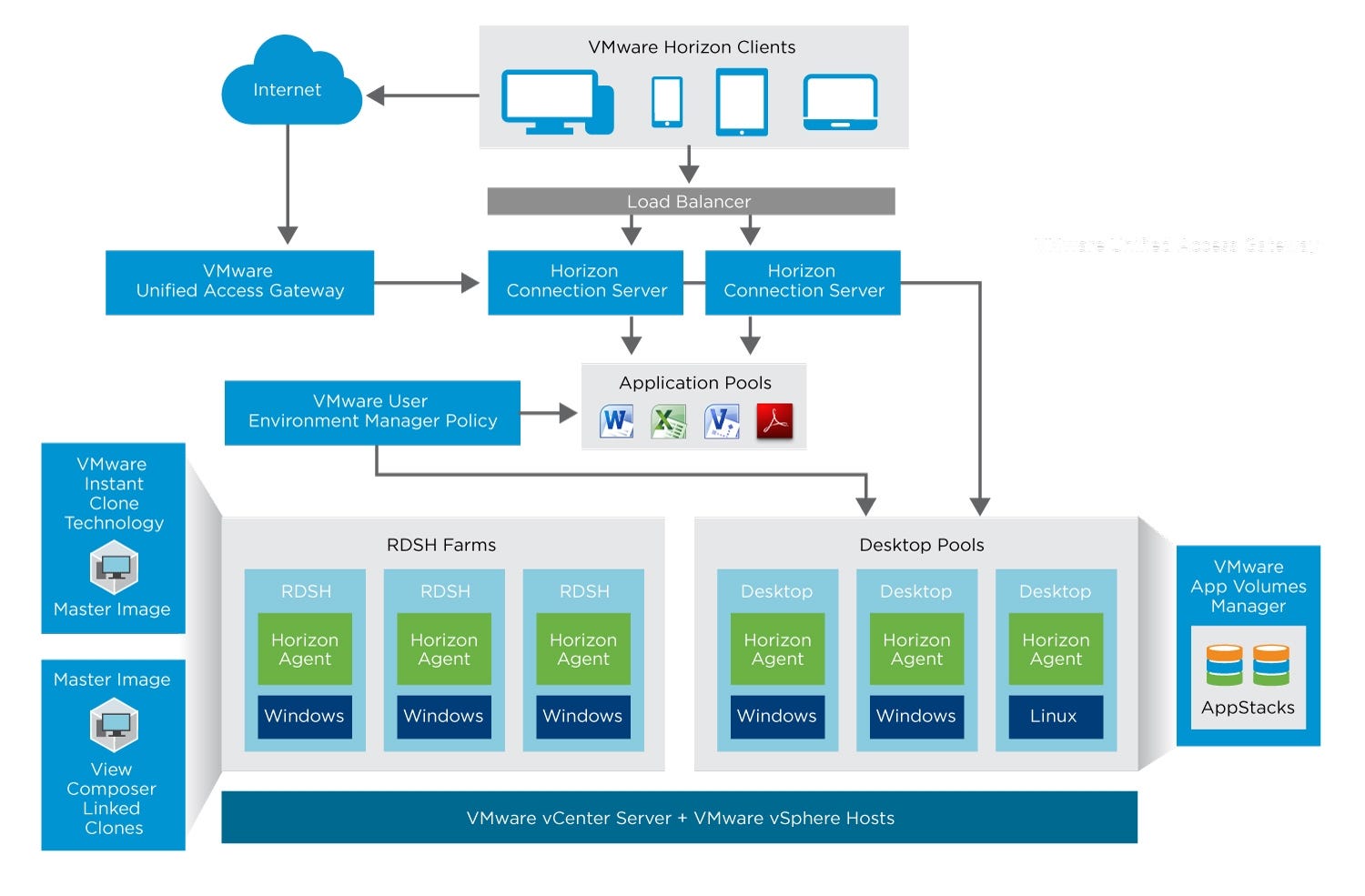

Horizon 7 network diagram. It now includes additional connection lines connection lines that have been changed from one way to two way arrows and some renamed connection lines. I always find this document to be really helpful when deploying not only view but when other components start getting involved. It now includes the horizon agent renamed from view agent the app volumes agent the new enrollment server for true sso and vmware vrealize operations for horizon. Horizon 7 uses tcp and udp ports for network access between its components.

Included are detailed horizon 7 network ports diagrams. If you change the default ports after installation you must manually reconfigure windows firewall rules to allow access on the updated ports. This comprehensive vmware horizon 7 network ports diagram document shows network ports for connectivity between the various components and servers in a horizon 7 deployment. Products and components included are view in horizon 7 workspace one access app volumes vrealize operations for horizon and vmware dynamic environment manager.

During installation horizon 7 can optionally configure windows firewall rules to open the ports that are used by default. Horizon view 7 network ports diagram. The diagram gives you a lot of vital information in one page. The diagram gives you a lot of vital information in one page.

October 3 2017 by knightblade1 in horizon view uncategorized vmware uag. Subsets of the main diagram focus on particular connection. The diagrams following the table show network ports for external connections by display protocol all with unified access gateway. Access point holds a place alongside view security server.

Vrealize operations for horizon. The following table lists network ports for external connections from a client device to horizon 7 components.
