Join global cybersecurity experts for threat hunting best practices strategies techniques and technologies in this exciting and informative virtual summit. Dmz interface bridged. The first rule is to exclude financial and health traffic or categories for ssl decryption source from the inside zone going to the outside zone.

hsrp network diagram with 3 se interpret neural network diagram lines in a network diagram can represent lewis dot diagram for sio2 network logic network diagram make layer 1 2 3 network diagram ids ips dmz network diagram identify network devices diagram cis293

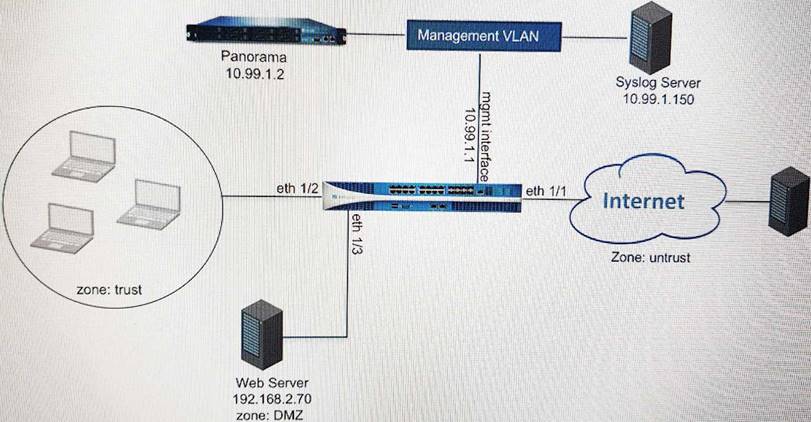

Free Printable Palo Alto Network Diagram Dmz Inside Outside

Palo Alto Zone Based Firewall Configuration Lab Letsconfig

Palo Alto

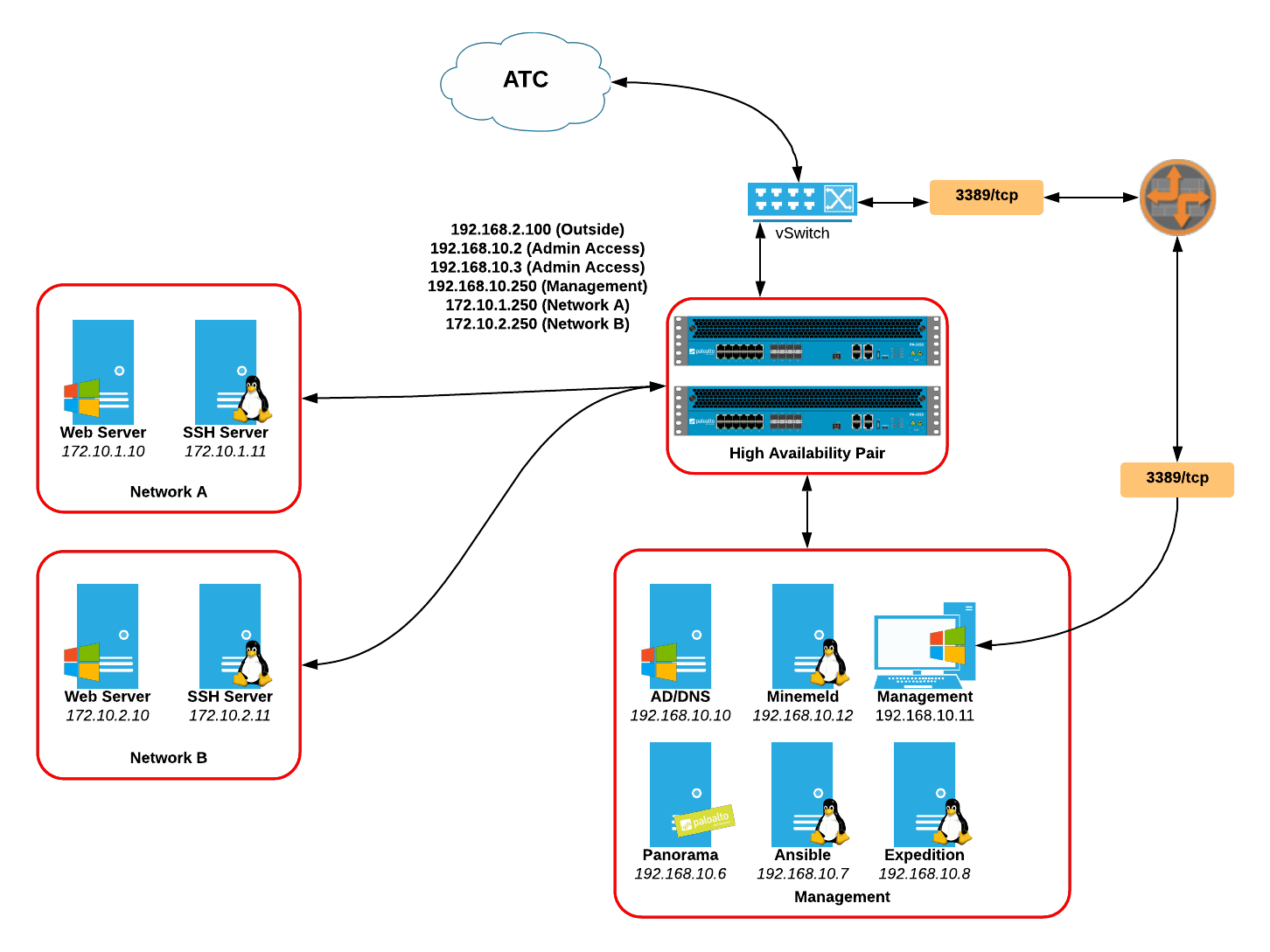

Best Practice Training For Palo Alto Networks

Security Policy Fundamentals Knowledge Base Palo Alto Networks

Gullynetworkers 09 07 19

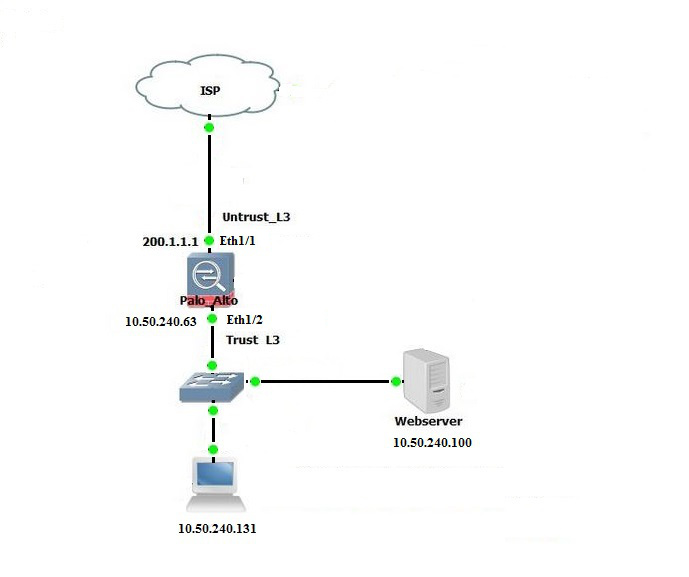

One To One Nat On Palo Alto Firewall For Access To Internal

Finally commit all the configuration by clicking commit from right top corner.

Palo alto network diagram dmz inside outside. Similarly we need to do the same steps for internal and dmz zone to add ip addresses for them. One to one nat is termed in palo alto as static nat. The palo alto firewall serves as the main layer 3 gateway so the switch is just passing all traffic to the firewall. In our lab 10 1 1 1 24 is internal interface ip and 192 168 1 1 24 is dmz interface ip.

So dmz in earlier blog palo alto to internet we configure how to allow users to go to the internet. An internal user connecting to this same fqdn connects to the external address though the physical server may be located on that user s internal subnet or a dmz with internal addressing. Outside interface vment0. Reaching internet from internal zone.

Users can bypass the palo alto networks pan firewall security profiles by using vpn or a web proxy. Inside interface vmnet2. The lab subnet is obscured and is not propagated within the network. The third rule is to decrypt ssh only traffic source from the inside zone going to the dmz.

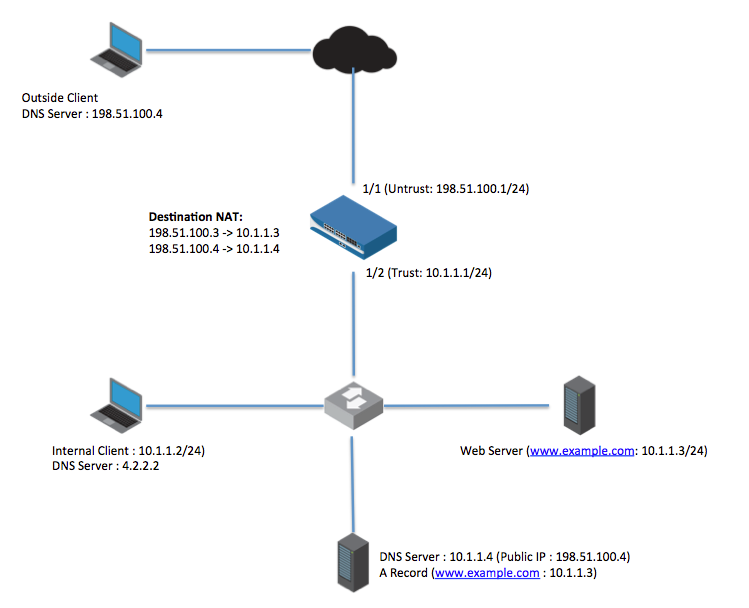

Hi due my self training on palo alto vm i have face some issue where i m not able to ping internet but able to ping next host on same subset my pc. Since the outside interface replies to icmp from the l3 switch and palo alto device but not the dmz host i would go through any possible routing related configurations on the devices involved and also confirm that the actual dmz host is configured with a default gateway so that it can reach the asa i presume it has a gateway set since it. To enable clients on the internal network to access the public web server in the dmz zone we must configure a nat rule that redirects the packet from the external network where the original routing table lookup will determine it should go based on the destination address of 203 0 113 11 within the packet to the actual address of the web server on the dmz network of 10 1 1 11. Understand how nat is being handled by the firewall.
